okhttp拦截器之RetryAndFollowUpInterceptor

android / okhttp

okhttp源码版本: 4.9.0

承接上篇okhttp框架解析

第一个内置拦截器，RetryAndFollowUpInterceptor如它的名字所诉重试&重定向。它会对特定的网络错误类型和需要重定向的请求进行请求网络重试，那么要想做到重试估计要开启一个循环不停的处理，那它具体是如何工作的呢?

先上RetryAndFollowUpInterceptor:intercept方法代码：

RetryAndFollowUpInterceptor:intercept

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
override fun intercept(chain: Interceptor.Chain): Response {
  val realChain = chain as RealInterceptorChain
  var request = chain.request
  val call = realChain.call
  var followUpCount = 0
  var priorResponse: Response? = null
  var newExchangeFinder = true
  var recoveredFailures = listOf<IOException>()
  while (true) {//开启轮询
 //1、构建一个ExchangeFinder
    call.enterNetworkInterceptorExchange(request, newExchangeFinder)//

    var response: Response
    var closeActiveExchange = true
    try {
      if (call.isCanceled()) {
        throw IOException("Canceled")
      }

      try {
        //2、运行下一个把拦截器，并拿到请求响应结果
        response = realChain.proceed(request)//拿到响应结果
        newExchangeFinder = true
      } catch (e: RouteException) {
        // The attempt to connect via a route failed. The request will not have been sent.
          //3 判断发生的RouteException是否回复
        if (!recover(e.lastConnectException, call, request, requestSendStarted = false)) {//
          throw e.firstConnectException.withSuppressed(recoveredFailures)
        } else {
          recoveredFailures += e.firstConnectException
        }
        newExchangeFinder = false
        continue//再次轮询
      } catch (e: IOException) {
        // An attempt to communicate with a server failed. The request may have been sent.
         //4 判断发生的IOException是否回复
        if (!recover(e, call, request, requestSendStarted = e !is ConnectionShutdownException)) {
          throw e.withSuppressed(recoveredFailures)
        } else {
          recoveredFailures += e
        }
        newExchangeFinder = false
        continue//再次轮询
      }

      // Attach the prior response if it exists. Such responses never have a body.
      //5 根据上一次的Response，构建一个新的response
      if (priorResponse != null) {//之前的Response
        response = response.newBuilder()
            .priorResponse(priorResponse.newBuilder()
                .body(null)
                .build())
            .build()
      }

      val exchange = call.interceptorScopedExchange
      //6、根据响应码创建一个新的Request请求
      val followUp = followUpRequest(response, exchange)//重定向
//7、上一步构建的Request为空，则不再继续下去，直接把的Response返回
      if (followUp == null) {
        if (exchange != null && exchange.isDuplex) {
          call.timeoutEarlyExit()
        }
        closeActiveExchange = false
        return response
      }
//8. 如果构建的Request的body为一次性的请求，也同样直接返回Response
      val followUpBody = followUp.body
      if (followUpBody != null && followUpBody.isOneShot()) {
        closeActiveExchange = false
        return response
      }

      response.body?.closeQuietly()
//9、如果重定向次数大于20次，也直接抛出异常，否次进入下次轮询也就是重试
      if (++followUpCount > MAX_FOLLOW_UPS) {
        throw ProtocolException("Too many follow-up requests: $followUpCount")
      }

      request = followUp
      priorResponse = response
    } finally {
      call.exitNetworkInterceptorExchange(closeActiveExchange)
    }
  }
}

在上面的代码中，在关键流程都做了注释。可以看intercept方法内部直接开启了一个while循环，和预期的一样。循环内部可以主要分为三块：

  1. 网络请求前的准备工作
  2. 把责任链往下传，运行下一个拦截器
  3. 根据响应结果判断是否要重试

第一步：网络请求前的准备工作：

​

1
2
3
4
5
6
7
8
9
10
11
12
13
14
override fun intercept(chain: Interceptor.Chain): Response {
  val realChain = chain as RealInterceptorChain
  var request = chain.request
  val call = realChain.call
  var followUpCount = 0
  var priorResponse: Response? = null
  var newExchangeFinder = true
  var recoveredFailures = listOf<IOException>()
  while (true) {//开启轮询
 //1、构建一个ExchangeFinder
    call.enterNetworkInterceptorExchange(request, newExchangeFinder)//
 //...
  }
}

调用RealCall的enterNetworkInterceptorExchange方法：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
fun enterNetworkInterceptorExchange(request: Request, newExchangeFinder: Boolean) {
  check(interceptorScopedExchange == null)

  //...
  if (newExchangeFinder) {
    this.exchangeFinder = ExchangeFinder(
        connectionPool,
        createAddress(request.url),
        this,
        eventListener
    )
  }
}

这里会给RealCall创建一个ExchangeFinder对象,这个ExchangeFinder的构造函数中包含两个重要对象connectionPool和Address。connectionPool连接池在之后ConnectInterceptor拦截器中会重点讲到，Address的创建通过createAddress方法：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
private fun createAddress(url: HttpUrl): Address {
   var sslSocketFactory: SSLSocketFactory? = null
   var hostnameVerifier: HostnameVerifier? = null
   var certificatePinner: CertificatePinner? = null
   if (url.isHttps) {
     sslSocketFactory = client.sslSocketFactory
     hostnameVerifier = client.hostnameVerifier
     certificatePinner = client.certificatePinner
   }

   return Address(
       uriHost = url.host,//主机名
       uriPort = url.port,//端口号
       dns = client.dns,//dns
       socketFactory = client.socketFactory,// socket工厂
       sslSocketFactory = sslSocketFactory,//TLS
       hostnameVerifier = hostnameVerifier,//TLS 主机验证
       certificatePinner = certificatePinner,//证书hash
       proxyAuthenticator = client.proxyAuthenticator,//身份验证
       proxy = client.proxy,//代理
       protocols = client.protocols,//协议类型：HTTP_1_1、HTTP_2
       connectionSpecs = client.connectionSpecs,//连接规则：加密和不加密
       proxySelector = client.proxySelector
   )
 }

createAddress创建Address对象，其包含主机名、端口号、TSL等建立网络联系相关的内容、Authenticator、代理、协议等，Address又用于ExchangeFinder对象的创建。ExchangeFinder从字面含义解释为交换查找器，一次网络请求和响应作为一次数据交换，所以ExchangeFinder是作为一个发现数据交换的工具，也为建立网络连接做好前置的准备。

第二步：把责任链往下传

这里比简单：response = realChain.proceed(request)拿到response

第三部：判断是否重试&重定向

先看catch部分地内容:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
override fun intercept(chain: Interceptor.Chain): Response {
  val realChain = chain as RealInterceptorChain
  var request = chain.request
  val call = realChain.call
  var followUpCount = 0
  var priorResponse: Response? = null
  var newExchangeFinder = true
  var recoveredFailures = listOf<IOException>()
  while (true) {//开启轮询
 //1、构建一个ExchangeFinder
    call.enterNetworkInterceptorExchange(request, newExchangeFinder)//

    var response: Response
    var closeActiveExchange = true
    try {
      if (call.isCanceled()) {
        throw IOException("Canceled")
      }

      try {
        //2、运行下一个把拦截器，并拿到请求响应结果
        response = realChain.proceed(request)//拿到响应结果
        newExchangeFinder = true
      } catch (e: RouteException) {
        // The attempt to connect via a route failed. The request will not have been sent.
          //3 判断发生的RouteException是否回复
        if (!recover(e.lastConnectException, call, request, requestSendStarted = false)) {//
          throw e.firstConnectException.withSuppressed(recoveredFailures)
        } else {
          recoveredFailures += e.firstConnectException
        }
        newExchangeFinder = false
        continue//再次轮询
      } catch (e: IOException) {
        // An attempt to communicate with a server failed. The request may have been sent.
         //4 判断发生的IOException是否回复
        if (!recover(e, call, request, requestSendStarted = e !is ConnectionShutdownException)) {
          throw e.withSuppressed(recoveredFailures)
        } else {
          recoveredFailures += e
        }
        newExchangeFinder = false
        continue//再次轮询
      }
      //...
    } finally {
      call.exitNetworkInterceptorExchange(closeActiveExchange)
    }
  }
}

如果发生的异常是属于RouteException或者IOException,并且是可恢复的请求，则continue再次发生网络请求。
那我们先分析一下RouteException情况：

RealCall

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
private fun recover(
  e: IOException,
  call: RealCall,
  userRequest: Request,
  requestSendStarted: Boolean
): Boolean {
  // 1
  if (!client.retryOnConnectionFailure) return false
  // 2
  if (requestSendStarted && requestIsOneShot(e, userRequest)) return false

  // 3 This exception is fatal
  if (!isRecoverable(e, requestSendStarted)) return false

  // 4 No more routes to attempt.
  if (!call.retryAfterFailure()) return false

  // For failure recovery, use the same route selector with a new connection.
  return true
}
  1. 如果OkHttpClient在构建时设置retryOnConnectionFailure为false，则不重试，默认为true
  2. 如果请求最多只能被发送一次，则不会重试
  3. 如果是以下致命的错误不重试
    1. ProtocolException协议异常
    2. SocketTimeoutException Socket连接超时异常
    3. SSLHandshakeException&&CertificateException TSL握手异常
    4. SSLPeerUnverifiedException 异常
  4. 如果寻找到可用的路由，如果不存在也不允许重试

在第四个条件中什么叫可用路由呢？ 需要先复习一下http相关的知识，访问某个确定的主机需要满足三个地址：IP地址、端口号、代理类型。比如 you个域名叫http://wds.com，一个域名可能有多个IP，如果给这个设置了http代理，就存在如下几种情况；

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
http://wds.com
1:ip:1.2.3.4
  port:80

2:ip:5.6.7.8
  port:80

假设代理的域名叫http://wdsproxy.com proxy：http

1:ip:11.22.33.44
  port:80

2:ip:55.66.77.88
  port:80
代理和不代理共就四中路由情况

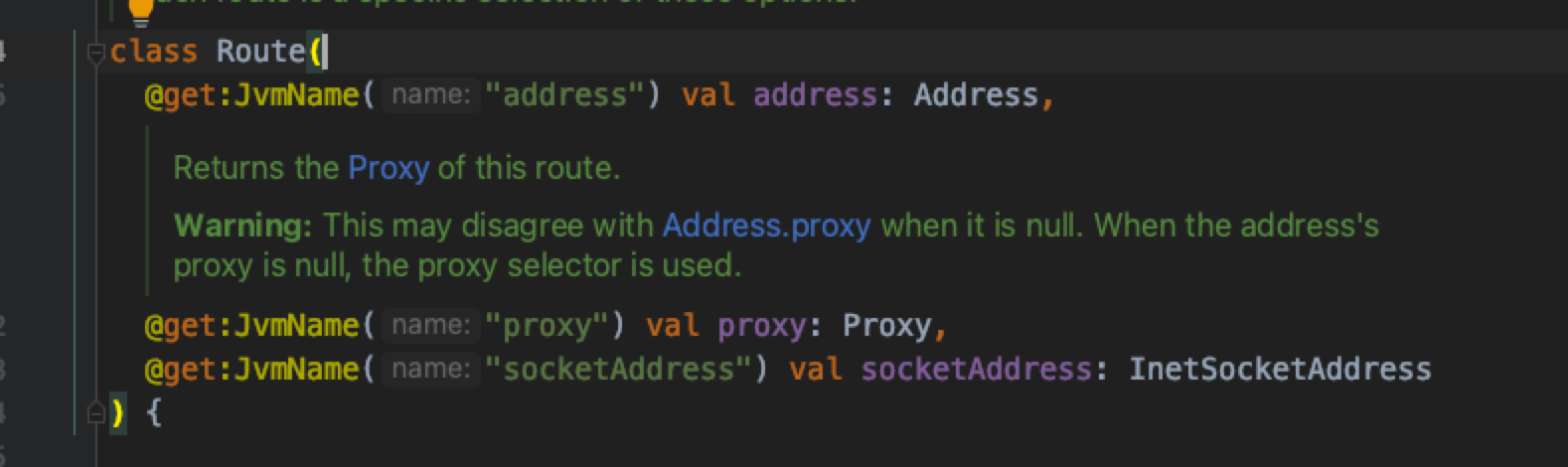

再回到代码中，看Route这个类
router
Route包含：Address（包含端口号）、代理类型、IP地址。所以retryAfterFailure方法就是从RrouteSelection中遍历
代码如下很简单可自行阅读：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
fun retryAfterFailure(): Boolean {
  if (refusedStreamCount == 0 && connectionShutdownCount == 0 && otherFailureCount == 0) {
    return false // Nothing to recover from.
  }

  if (nextRouteToTry != null) {
    return true
  }

  val retryRoute = retryRoute()
  if (retryRoute != null) {
    // Lock in the route because retryRoute() is racy and we don't want to call it twice.
    nextRouteToTry = retryRoute
    return true
  }

  // If we have a routes left, use 'em.
  if (routeSelection?.hasNext() == true) return true

  // If we haven't initialized the route selector yet, assume it'll have at least one route.
  val localRouteSelector = routeSelector ?: return true

  // If we do have a route selector, use its routes.
  return localRouteSelector.hasNext()
}

分析完RouteException，IOException情况类似，这里就不分析了。

followUpRequest方法:
根据请求码创建一个新的请求，以供下一次重试请求使用：会根据上一次的请求结果添加认证头信息，跟踪重定向或处理客户端请求超时等。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
private fun followUpRequest(userResponse: Response, exchange: Exchange?): Request? {
  val route = exchange?.connection?.route()
  val responseCode = userResponse.code

  val method = userResponse.request.method
  when (responseCode) {
    HTTP_PROXY_AUTH -> {
      val selectedProxy = route!!.proxy
      if (selectedProxy.type() != Proxy.Type.HTTP) {
        throw ProtocolException("Received HTTP_PROXY_AUTH (407) code while not using proxy")
      }
      return client.proxyAuthenticator.authenticate(route, userResponse)
    }

    HTTP_UNAUTHORIZED -> return client.authenticator.authenticate(route, userResponse)

    HTTP_PERM_REDIRECT, HTTP_TEMP_REDIRECT, HTTP_MULT_CHOICE, HTTP_MOVED_PERM, HTTP_MOVED_TEMP, HTTP_SEE_OTHER -> {
      return buildRedirectRequest(userResponse, method)
    }

    HTTP_CLIENT_TIMEOUT -> {
      // 408's are rare in practice, but some servers like HAProxy use this response code. The
      // spec says that we may repeat the request without modifications. Modern browsers also
      // repeat the request (even non-idempotent ones.)
      if (!client.retryOnConnectionFailure) {
        // The application layer has directed us not to retry the request.
        return null
      }

      val requestBody = userResponse.request.body
      if (requestBody != null && requestBody.isOneShot()) {
        return null
      }
      val priorResponse = userResponse.priorResponse
      if (priorResponse != null && priorResponse.code == HTTP_CLIENT_TIMEOUT) {
        // We attempted to retry and got another timeout. Give up.
        return null
      }

      if (retryAfter(userResponse, 0) > 0) {
        return null
      }

      return userResponse.request
    }

    HTTP_UNAVAILABLE -> {
      val priorResponse = userResponse.priorResponse
      if (priorResponse != null && priorResponse.code == HTTP_UNAVAILABLE) {
        // We attempted to retry and got another timeout. Give up.
        return null
      }

      if (retryAfter(userResponse, Integer.MAX_VALUE) == 0) {
        // specifically received an instruction to retry without delay
        return userResponse.request
      }

      return null
    }

    HTTP_MISDIRECTED_REQUEST -> {
      // OkHttp can coalesce HTTP/2 connections even if the domain names are different. See
      // RealConnection.isEligible(). If we attempted this and the server returned HTTP 421, then
      // we can retry on a different connection.
      val requestBody = userResponse.request.body
      if (requestBody != null && requestBody.isOneShot()) {
        return null
      }

      if (exchange == null || !exchange.isCoalescedConnection) {
        return null
      }

      exchange.connection.noCoalescedConnections()
      return userResponse.request
    }

    else -> return null
  }
}
  1. HTTP_PROXY_AUTH（407）：代理认证，需要进行代理认证（默认实现返回null，可以进行重写覆盖实现）；
  2. HTTP_UNAUTHORIZED（401）：未授权，需要进行授权认证（默认实现返回null，可以进行重写覆盖实现）；
  3. HTTP_PERM_REDIRECT（307） 或者 HTTP_TEMP_REDIRECT（308） ：临时重定向或者永久重定向，如果请求方法不为GET且不为METHOD，返回空，表示不允许重定向；
  4. HTTP_MULT_CHOICE（300） 多选项
  5. HTTP_MOVED_PERM（301） 永久重定向，表示请求的资源已经分配了新的URI，以后应该使用新的URI 、
  6. HTTP_MOVED_TEMP（302）临时性重定向
  7. HTTP_MOVED_TEMP（303）表示由于请求对应的资源存在着另外一个URI，应该使用GET方法定向获取请求的资源
  8. HTTP_CLIENT_TIMEOUT(408）：请求超时，
  9. HTTP_UNAVAILABLE（503）：表明服务器暂时处于超负载或正在进行停机维护，现无法处理请求。
  10. 本次请求结果和上一次请求结果均返回503，则放弃重试
  11. 如果返回的Retry-After为0，没有任何延迟，则返回Request对象，否则返回空;

RetryAndFollowUpInterceptor主要内容就分析完了
