Java Binder解析

android / 源码解析

在Native Binder的系统服务注册过程中，核心是ServiceManager,在Java Binder中，也有一个ServiceManager，然而这个ServiceManager是个Java文件。在Java Binder注册系统服务到也需要用到ServiceManager，那么需要选择一个系统服务来窥探这一过程，这里以常见的ActivityManagerServcie（AMS）为例。

1-将AMS注册到ServiceManager

在AMS的setSystemProcess方法中，会调用ServiceManager的addService方法，至于为什么会调用AMS的setSystemProcess方法可自行查阅SystemService进程的启动流程。

frameworks/base/services/core/java/com/android/server/am/ActivityManagerService.java

1
2
3
4
5
6
7
8
9
10
11
12
13
14
public void setSystemProcess() {
       try {
           ServiceManager.addService(Context.ACTIVITY_SERVICE, this, /* allowIsolated= */ true,
                   DUMP_FLAG_PRIORITY_CRITICAL | DUMP_FLAG_PRIORITY_NORMAL | DUMP_FLAG_PROTO);
           ServiceManager.addService(ProcessStats.SERVICE_NAME, mProcessStats);
           //...         ;/..../xs[--------------------------gh]

       } catch (PackageManager.NameNotFoundException e) {
           throw new RuntimeException(
                   "Unable to find android system package", e);
       }
       //...
   }

Context.ACTIVITY_SERVICE的值为activity,和Native Binder类事把服务名添加到ServiceManager中。

frameworks/base/core/java/android/os/ServiceManager.java

1
2
3
4
5
6
7
8
9
public static void addService(String name, IBinder service, boolean allowIsolated,
        int dumpPriority) {
    try {
        getIServiceManager().addService(name, service, allowIsolated, dumpPriority);
    } catch (RemoteException e) {
        Log.e(TAG, "error in addService", e);
    }
}

主要看getIServiceManager方法返回的是什么，代码如下

frameworks/base/core/java/android/os/ServiceManager.java

1
2
3
4
5
6
7
8
9
10
private static IServiceManager getIServiceManager() {
    if (sServiceManager != null) {
        return sServiceManager;
    }

    // Find the service manager
    sServiceManager = ServiceManagerNative
            .asInterface(Binder.allowBlocking(BinderInternal.getContextObject()));
    return sServiceManager;
}
  • BinderInternal.getContextObject())
  • ServiceManagerNative.asInterface
  • getIServiceManager().addService

1.1-BinderInternal.getContextObject

Binder.allowBlocking的作用就是将BinderProxy的mWarnOnBlocking的值设置为 false，主要分析的BinderInternal.getContextObject方法的作用，这是一个Native方法。在Java Binder的JNI注册文章中说了会注册BinderInternal的Native方法。getContextObject就是其中之一，它对于JNI函数如下：

frameworks/base/core/jni/android_util_Binder.cpp

1
2
3
4
5
static jobject android_os_BinderInternal_getContextObject(JNIEnv* env, jobject clazz)
{
    sp<IBinder> b = ProcessState::self()->getContextObject(NULL);
    return javaObjectForIBinder(env, b);
}

又看见了熟悉的ProcessState::self()->getContextObject(NULL),最终会返回个BpBinder,不熟悉的朋友可以查看Native Binder机制之系统服务注册。BpBinder是Native Binder的客户端，这说明Java Binder需要Native的BpBinder，但是BpBinder在Java层无法直接使用，所以这里使用javaObjectForIBinder函数进行处理，代码如下：

frameworks/base/core/jni/android_util_Binder.cpp

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
// If the argument is a JavaBBinder, return the Java object that was used to create it.
// Otherwise return a BinderProxy for the IBinder. If a previous call was passed the
// same IBinder, and the original BinderProxy is still alive, return the same BinderProxy.
jobject javaObjectForIBinder(JNIEnv* env, const sp<IBinder>& val)
{
    if (val == NULL) return NULL;

    if (val->checkSubclass(&gBinderOffsets)) {
        // It's a JavaBBinder created by ibinderForJavaObject. Already has Java object.
        jobject object = static_cast<JavaBBinder*>(val.get())->object();
        LOGDEATH("objectForBinder %p: it's our own %p!\n", val.get(), object);
        return object;
    }

    // For the rest of the function we will hold this lock, to serialize
    // looking/creation/destruction of Java proxies for native Binder proxies.
    AutoMutex _l(gProxyLock);

    BinderProxyNativeData* nativeData = gNativeDataCache;
    if (nativeData == nullptr) {
        nativeData = new BinderProxyNativeData();
    }
    // gNativeDataCache is now logically empty.
    jobject object = env->CallStaticObjectMethod(gBinderProxyOffsets.mClass,
            gBinderProxyOffsets.mGetInstance, (jlong) nativeData, (jlong) val.get());
    if (env->ExceptionCheck()) {
        // In the exception case, getInstance still took ownership of nativeData.
        gNativeDataCache = nullptr;
        return NULL;
    }
    BinderProxyNativeData* actualNativeData = getBPNativeData(env, object);
    if (actualNativeData == nativeData) {
        // New BinderProxy; we still have exclusive access.
        nativeData->mOrgue = new DeathRecipientList;
        nativeData->mObject = val;//保存BpBinder
        gNativeDataCache = nullptr;
        ++gNumProxies;
        if (gNumProxies >= gProxiesWarned + PROXY_WARN_INTERVAL) {
            ALOGW("Unexpectedly many live BinderProxies: %d\n", gNumProxies);
            gProxiesWarned = gNumProxies;
        }
    } else {
        // nativeData wasn't used. Reuse it the next time.
        gNativeDataCache = nativeData;
    }

    return object;
}

先看这个函数的注释:

If the argument is a JavaBBinder, return the Java object that was used to create it.
Otherwise return a BinderProxy for the IBinder. If a previous call was passed the
same IBinder, and the original BinderProxy is still alive, return the same BinderProxy.

解释的很清楚，如果参数是JavaBBinder，则返回用于创建它的Java对象。否则为返回一个BinderProxy。如果之前的调用传递IBinder相同，并且BinderProxy已存在，则这把BinderProxy返回。此时调用javaObjectForIBinder的参数是BpBinder,显然会返回一个BinderProxy。

还是记得之前BinderProxy类的初始化吗,会在gBinderProxyOffsets这个结构体保存BinderProxy类一些相关信息。
一步步分析javaObjectForIBinder函数，
先看如下部分

1
2
3
4
BinderProxyNativeData* nativeData = gNativeDataCache;
if (nativeData == nullptr) {
    nativeData = new BinderProxyNativeData();
}

创建一个BinderProxyNativeData对象复制给nativeData，先其内部的空的。

注意下面这行代码:

1
2
3
// gNativeDataCache is now logically empty.
jobject object = env->CallStaticObjectMethod(gBinderProxyOffsets.mClass,
            gBinderProxyOffsets.mGetInstance, (jlong) nativeData, (jlong) val.get());

其实是调用Java层BinderProxy.getInstance方法,入参数分别是BinderProxyNativeData对象和BpBinder

frameworks/base/core/java/android/os/Binder.java::BinderProxy

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
private static BinderProxy getInstance(long nativeData, long iBinder) {
    BinderProxy result;
    try {
        //根据BpBinder先从Map中取，BinderProxy
        result = sProxyMap.get(iBinder);
        if (result != null) {
            return result;
        }
        result = new BinderProxy(nativeData);
    } catch (Throwable e) {
        // We're throwing an exception (probably OOME); don't drop nativeData.
        NativeAllocationRegistry.applyFreeFunction(NoImagePreloadHolder.sNativeFinalizer,
                nativeData);
        throw e;
    }
    NoImagePreloadHolder.sRegistry.registerNativeAllocation(result, nativeData);
    // The registry now owns nativeData, even if registration threw an exception.

    //缓存BinderProxy
    sProxyMap.set(iBinder, result);
    return result;
}

private BinderProxy(long nativeData) {
    //把native层的BinderProxyNativeData赋值给mNativeData字段
    mNativeData = nativeData;
}

关于getBPNativeData部分的代码：

1
2
3
4
5
6
//objexct为BinderProxy
BinderProxyNativeData* actualNativeData = getBPNativeData(env, object);

BinderProxyNativeData* getBPNativeData(JNIEnv* env, jobject obj) {
    return (BinderProxyNativeData *) env->GetLongField(obj, gBinderProxyOffsets.mNativeData);
}

getBPNativeData函数其实就是获取Java层BinderProxy的 mNativeData属性字段。

最后一段代码，逻辑上就是给gNativeDataCache的mObject和mOrgue赋值，注意mObject就是BpBinder，然后复用gNativeDataCache,

1
2
3
4
5
6
7
8
9
10
11
12
13
14
if (actualNativeData == nativeData) {
        // New BinderProxy; we still have exclusive access.
        nativeData->mOrgue = new DeathRecipientList;
        nativeData->mObject = val;//保存BpBinder
        gNativeDataCache = nullptr;
        ++gNumProxies;
        if (gNumProxies >= gProxiesWarned + PROXY_WARN_INTERVAL) {
            ALOGW("Unexpectedly many live BinderProxies: %d\n", gNumProxies);
            gProxiesWarned = gNumProxies;
        }
    } else {
        // nativeData wasn't used. Reuse it the next time.
        gNativeDataCache = nativeData;
    }

看了这么一大段代码，一会调用C++,一会有调用Java，Native对象和Java对象互相指向，是不是有点晕。总结一下javaObjectForIBinder函数：

  1. 如果nativeData为空的话，就创建一个BinderProxyNativeData对象
  2. 调用Java层BinderProxy的getInstance方法返回一个Java层的BinderProxy对象
    1. getInstance方法两个入参数Native层的nativeData和BpBinder
    2. 在getInstance方法内会把nativeData赋值给Java 层BinderProxy的mNativeData字段。
    3. 根据Native层BpBinder缓存BinderProxy对象
  3. 通过getBPNativeData函数获取Java层BinderProxy的成员变量mNativeData指向Native的BinderProxyNativeData
  4. 最终javaObjectForIBinder函数会返回Java层的BpBinder

关于为什么这么设计，没看到查到更多设计文档，但从BinderProxyNativeData上的注释的可知一二：减少 JNI Java 字段访问的数量

1
2
3
4
5
6
7
8
9
// We aggregate native pointer fields for BinderProxy in a single object to allow
// management with a single NativeAllocationRegistry, and to reduce the number of JNI
// Java field accesses. This costs us some extra indirections here.
struct BinderProxyNativeData {
    // The native IBinder proxied by this BinderProxy.
    sp<IBinder> mObject;
    sp<DeathRecipientList> mOrgue;
};

1.2-ServiceManagerNative.asInterface

还记得Native层的障眼法asInterface函数，它的作用就是通过BpBinder创建一个BpServiceManager。那在Java层的asInterface方法到底是干什么呢？

android.os.ServiceManagerNative

1
2
3
4
5
6
7
8
9
10
11
12
static public IServiceManager asInterface(IBinder obj)
{
    if (obj == null) {
        return null;
    }
    IServiceManager in =
        (IServiceManager)obj.queryLocalInterface(descriptor);
    if (in != null) {
        return in;
    }
    return new ServiceManagerProxy(obj);
}

这里的obj的值为BinderProxy,那asInterface方法的作用就是以BinderProxy创建一个ServiceManagerProxy对象。

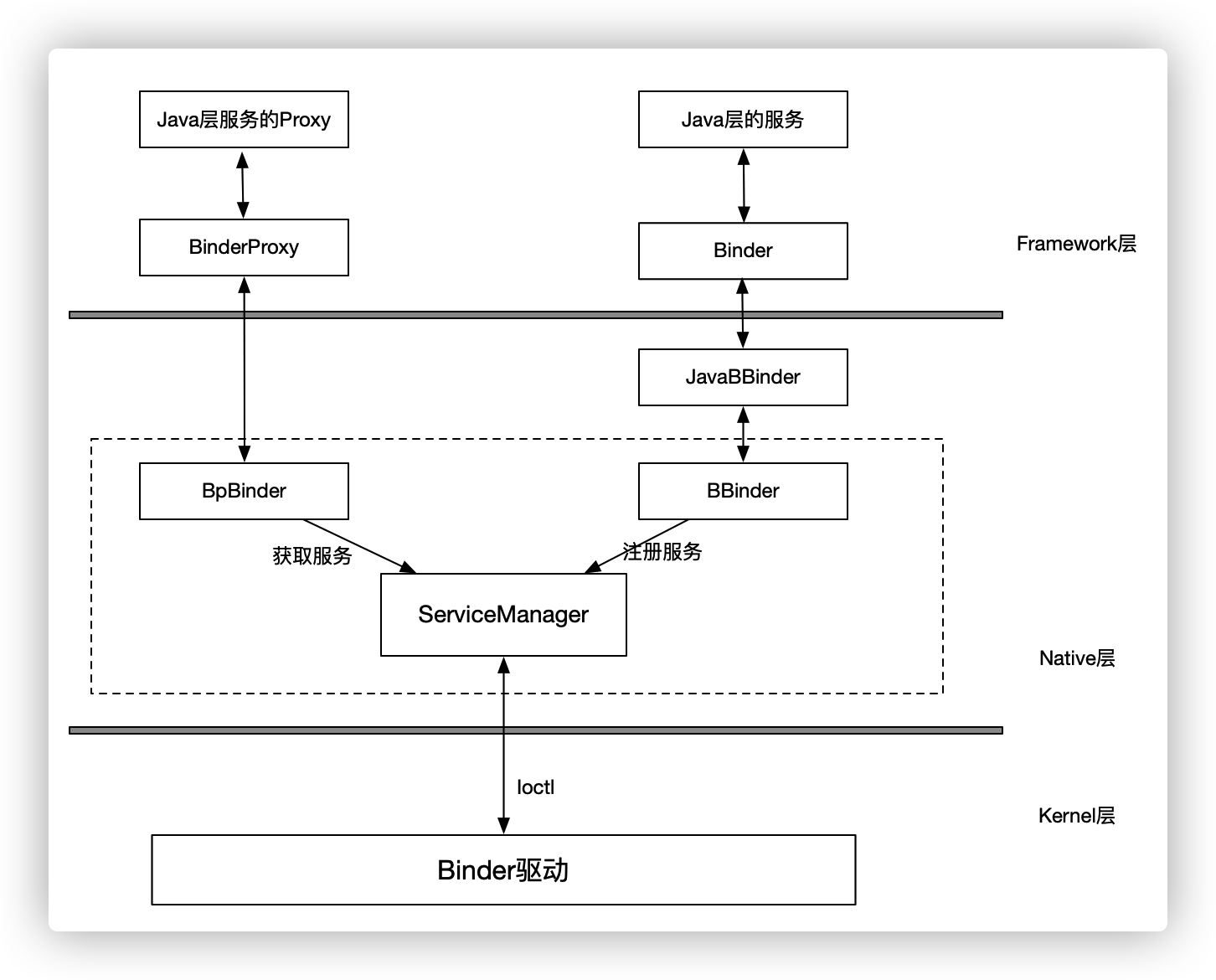

BinderProxy和BpBinder分别代表Java层和Native层的客户端。在Native层BpServiceManager通过BpBinder来通信。
在Java层ServiceManagerProxy将业务请求交给BinderProxy处理。

1
sServiceManager = ServiceManagerNative.asInterface(Binder.allowBlocking(BinderInternal.getContextObject()));

上面的代码经过前面篇幅的分析，其实可以转化为如下：

1
sServiceManager =new ServiceManagerProxy(new BinderProxy()));

1.3-getIServiceManager().addService

getIServiceManager()返回的是ServiceManagerProxy,ServiceManagerProxy是ServiceManagerNative的内部类。它实现了IServiceManager的接口。

android.os.ServiceManagerNative.java::ServiceManagerProxy

1
2
3
4
5
6
7
8
9
10
11
12
13
public void addService(String name, IBinder service, boolean allowIsolated, int dumpPriority)
        throws RemoteException {
    Parcel data = Parcel.obtain();
    Parcel reply = Parcel.obtain();
    data.writeInterfaceToken(IServiceManager.descriptor);
    data.writeString(name);
    data.writeStrongBinder(service);//service就是ActivityManagerService
    data.writeInt(allowIsolated ? 1 : 0);
    data.writeInt(dumpPriority);
    mRemote.transact(ADD_SERVICE_TRANSACTION, data, reply, 0);
    reply.recycle();
    data.recycle();
}

这里和Native层的addService很像，分别创建请求和接受的数据包Parcel。把service写入到data中，关于data.writeStrongBinder(service)后面会重点将。调用mRemote的transact方法，ADD_SERVICE_TRANSACTION在Native层也见到过，最终会在内核层处理这个switch/case。但问题是现在Java层，如何和关联Native层服务注册呢？
关键就在于mRemote就是BinderProxy,看它的transact方法：

1
2
3
4
5
6
7
8
9
10
11
12
public boolean transact(int code, Parcel data, Parcel reply, int flags) throws RemoteException {
    //...
    try {
        return transactNative(code, data, reply, flags);
    } finally {
        if (tracingEnabled) {
            Trace.traceEnd(Trace.TRACE_TAG_ALWAYS);
        }
    }
}
public native boolean transactNative(int code, Parcel data, Parcel reply,
        int flags) throws RemoteException;

最终会调用一个 native函数，再次回到android_util_Binder.cpp

frameworks/base/core/jni/android_util_Binder.cpp

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
static const JNINativeMethod gBinderProxyMethods[] = {
     /* name, signature, funcPtr */
     //...
    {"transactNative",      "(ILandroid/os/Parcel;Landroid/os/Parcel;I)Z", (void*)android_os_BinderProxy_transact},
    //...
};

static jboolean android_os_BinderProxy_transact(JNIEnv* env, jobject obj,
        jint code, jobject dataObj, jobject replyObj, jint flags) // throws RemoteException
{
    if (dataObj == NULL) {
        jniThrowNullPointerException(env, NULL);
        return JNI_FALSE;
    }

    Parcel* data = parcelForJavaObject(env, dataObj);//1、把Java层的发送Parcel转为Native层的Parcel
    if (data == NULL) {
        return JNI_FALSE;
    }
    Parcel* reply = parcelForJavaObject(env, replyObj);//2、把Java层的接收的Parcel转为Native层的Parcel
    if (reply == NULL && replyObj != NULL) {
        return JNI_FALSE;
    }

    IBinder* target = getBPNativeData(env, obj)->mObject.get();//3
    if (target == NULL) {
        jniThrowException(env, "java/lang/IllegalStateException", "Binder has been finalized!");
        return JNI_FALSE;
    }
    //...

    //printf("Transact from Java code to %p sending: ", target); data->print();
    status_t err = target->transact(code, *data, reply, flags);//4
    //if (reply) printf("Transact from Java code to %p received: ", target); reply->print();

    if (kEnableBinderSample) {
        if (time_binder_calls) {
            conditionally_log_binder_call(start_millis, target, code);
        }
    }

    if (err == NO_ERROR) {
        return JNI_TRUE;
    } else if (err == UNKNOWN_TRANSACTION) {
        return JNI_FALSE;
    }

    signalExceptionForError(env, obj, err, true /*canThrowRemoteException*/, data->dataSize());
    return JNI_FALSE;
}

该函数会先正注释1和注释2处把Java层的请求和接收数据的包转为Native的层的Parcel。然后调用getBPNativeData函数：

1
2
3
BinderProxyNativeData* getBPNativeData(JNIEnv* env, jobject obj) {
    return (BinderProxyNativeData *) env->GetLongField(obj, gBinderProxyOffsets.mNativeData);
}

获取Java层BinderProxy的mNativeData成员变量，mNativeData其实就是Native层的BinderProxyNativeData,返回到注释3，获取BinderProxyNativeData的mObject,也就是BpBinder。接着来到注释4调用BpBinder的transact函数，向Binder驱动发送数据，这部分内容在Native Binder机制之系统服务注册已经分析过了，不再赘述。

2-引出JavaBBinder

在对addService分析时曾提示data.writeStrongBinder(service)，很重要，那它到底最重要在哪呢？

frameworks/base/core/java/android/os/Parcel.java

1
2
3
public final void writeStrongBinder(IBinder val) {
    nativeWriteStrongBinder(mNativePtr, val);
}

frameworks/base/core/jni/android_os_Parcel.cpp

1
2
3
4
5
6
7
8
9
10
11
12
{"nativeWriteStrongBinder",   "(JLandroid/os/IBinder;)V", (void*)android_os_Parcel_writeStrongBinder},

static void android_os_Parcel_writeStrongBinder(JNIEnv* env, jclass clazz, jlong nativePtr, jobject object)
{
    Parcel* parcel = reinterpret_cast<Parcel*>(nativePtr);
    if (parcel != NULL) {
        const status_t err = parcel->writeStrongBinder(ibinderForJavaObject(env, object));
        if (err != NO_ERROR) {
            signalExceptionForError(env, clazz, err);
        }
    }
}

刚刚分析了javaObjectForIBinder,这里又出现了ibinderForJavaObject，从命名上有点倒过来的感觉，有点意思。把Java层传进来Binder通过ibinderForJavaObject函数转换一下保存到parcel数据包中。

frameworks/base/core/jni/android_util_Binder.cpp

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
sp<IBinder> ibinderForJavaObject(JNIEnv* env, jobject obj)
{
    if (obj == NULL) return NULL;

    // Instance of Binder?
    if (env->IsInstanceOf(obj, gBinderOffsets.mClass)) {//1
        JavaBBinderHolder* jbh = (JavaBBinderHolder*)
            env->GetLongField(obj, gBinderOffsets.mObject);
        return jbh->get(env, obj);
    }

    // Instance of BinderProxy?
    if (env->IsInstanceOf(obj, gBinderProxyOffsets.mClass)) {//3
        return getBPNativeData(env, obj)->mObject;
    }

    ALOGW("ibinderForJavaObject: %p is not a Binder object", obj);
    return NULL;
}

第一种情况：如果Java层obj对象是的Binder类，则获取Java层obj对象的成员mObject,也是就是Native层的JavaBBinderHolder对象，然后调用JavaBBinderHolder的get函数。

第二种情况：如果Java层obj对象是BinderProxy类，则返回BpBinder。

此时的obj是Jave层传入的ActivityManagerService,那得看AMS具体是从什么派生出来的。

1
2
3
4
public class ActivityManagerService extends IActivityManager.Stub
implements Watchdog.Monitor, BatteryStatsImpl.BatteryCallback {
    //...
}

可以看到ActivityManagerService是继承IActivityManager.Stub，但在代码中是无法直接搜索得该类。只有一个IActivityManager.aidl文件,看到这里应当知道是位编译阶段根据IActivityManager.aidl生成 IActivityManager.java。

1
2
3
4
5
6
7
8
9
10
11
12
13
public interface IActivityManager extends IInterface {
    //...

    public static abstract class Stub extends android.os.Binder implements android.app.IActivityManager{
        //...

    }
    //...
    private static class Proxy implements android.app.IActivityManager{
        //...
    }

}

IActivityManager内部类Stub继承Binder，并实现了IActivityManager接口。所以ActivityManagerService是从Binder派生出来的，并实现了IActivityManager接口。在此时ibinderForJavaObject函数逻辑调用的是第一种情况。先从Jave层Binder获取JavaBBinderHolder，在调用JavaBBinderHolder的get函数。

Binder的mObject是在构造函数中初始化的

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
class JavaBBinderHolder
{
public:
    sp<JavaBBinder> get(JNIEnv* env, jobject obj)
    {
        AutoMutex _l(mLock);
        sp<JavaBBinder> b = mBinder.promote();
        if (b == NULL) {
            //obj是Java层Binder对象也就是AMS
            b = new JavaBBinder(env, obj);
            mBinder = b;
            ALOGV("Creating JavaBinder %p (refs %p) for Object %p, weakCount=%" PRId32 "\n",
                 b.get(), b->getWeakRefs(), obj, b->getWeakRefs()->getWeakCount());
        }

        return b;
    }

    sp<JavaBBinder> getExisting()
    {
        AutoMutex _l(mLock);
        return mBinder.promote();
    }

private:
    Mutex           mLock;
    wp<JavaBBinder> mBinder;
};

JavaBBinderHolder的get函数返回的是个JavaBBinder对象，JavaBBinder对象内会有Java层的Binder对象。也就是说addService实际添加到parcel的并不是AMS本身，而是一个JavaBBinder对象，并最终传递到Binder驱动的也是这个JavaBBinder。

2.1-分析JavaBBinder

frameworks/base/core/jni/android_util_Binder.cpp

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
class JavaBBinder : public BBinder
{
public:
    JavaBBinder(JNIEnv* env, jobject /* Java Binder */ object)
        : mVM(jnienv_to_javavm(env)), mObject(env->NewGlobalRef(object))
    {
        ALOGV("Creating JavaBBinder %p\n", this);
        gNumLocalRefsCreated.fetch_add(1, std::memory_order_relaxed);
        gcIfManyNewRefs(env);
    }
    //...
private:
    JavaVM* const   mVM;
    jobject const   mObject;  // GlobalRef to Java Binder
};

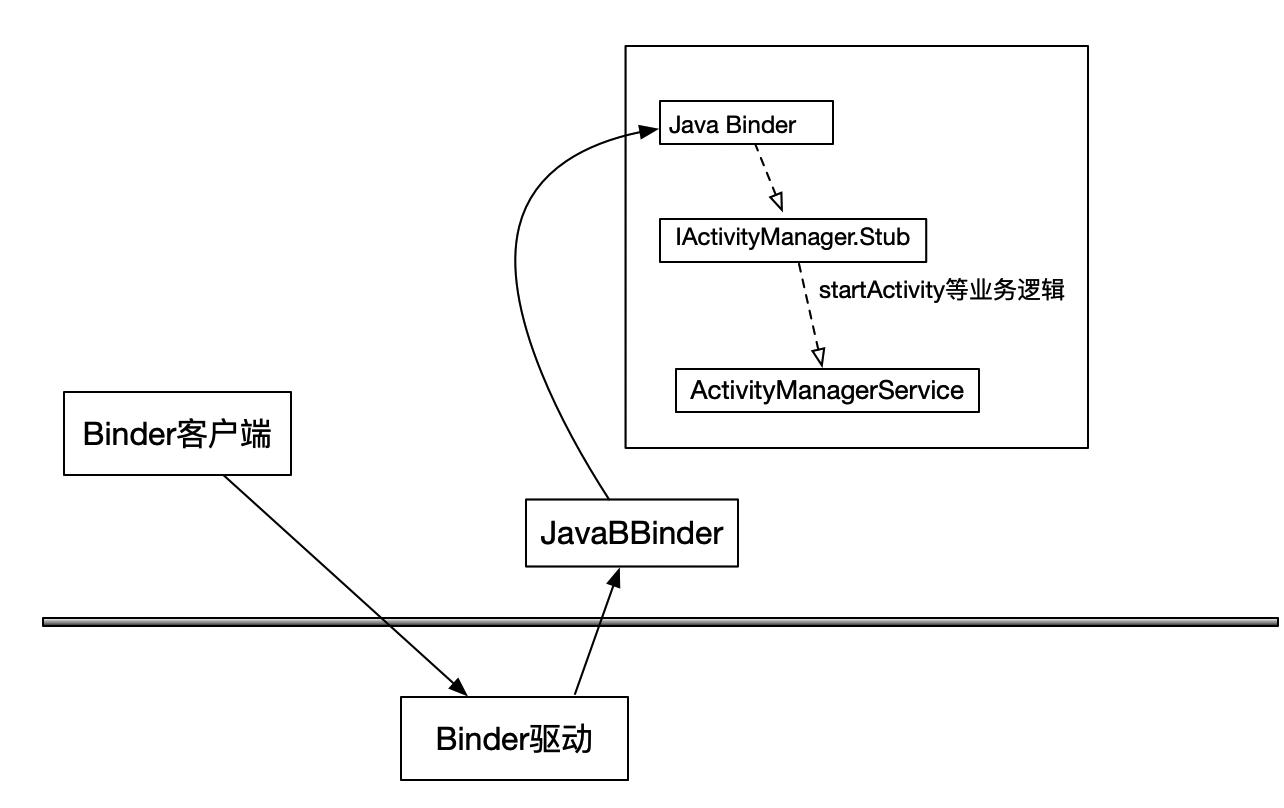

从代码可以知JavaBBinder继承了BBinder,当Binder驱动的到客户的请求后，会将相应发送给JavaBBinder,这时会调用JavaBBinder的onTransact函数，代码如下：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
virtual status_t onTransact(
      uint32_t code, const Parcel& data, Parcel* reply, uint32_t flags = 0)
  {
      JNIEnv* env = javavm_to_jnienv(mVM);



      IPCThreadState* thread_state = IPCThreadState::self();
      const int32_t strict_policy_before = thread_state->getStrictModePolicy();

      jboolean res = env->CallBooleanMethod(mObject, gBinderOffsets.mExecTransact,
          code, reinterpret_cast<jlong>(&data), reinterpret_cast<jlong>(reply), flags);
      //...

      return res != JNI_FALSE ? NO_ERROR : UNKNOWN_TRANSACTION;
  }

会调用Java层Binder的execTransact函数，代码如下：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
// Entry point from android_util_Binder.cpp's onTransact
private boolean execTransact(int code, long dataObj, long replyObj,
        int flags) {
    BinderCallsStats binderCallsStats = BinderCallsStats.getInstance();
    BinderCallsStats.CallSession callSession = binderCallsStats.callStarted(this, code);
    Parcel data = Parcel.obtain(dataObj);
    Parcel reply = Parcel.obtain(replyObj);

    boolean res;
    //...
    try {
        //...
        res = onTransact(code, data, reply, flags);
    } catch (RemoteException|RuntimeException e) {
        //...
    } finally {
        //...
    }
    //...
    return res;
}

execTransact的关键代码就是调用onTransact方法，派生类可以实现onTransact方法，实现自己的业务代码，ActivityManagerService实现了自己的onTransact方法,如下：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
@Override
public boolean onTransact(int code, Parcel data, Parcel reply, int flags)
        throws RemoteException {
    //...
    try {
        return super.onTransact(code, data, reply, flags);//调用父类的onTransact
    } catch (RuntimeException e) {
        // The activity manager only throws certain exceptions intentionally, so let's
        // log all others.
        if (!(e instanceof SecurityException
                || e instanceof IllegalArgumentException
                || e instanceof IllegalStateException)) {
            Slog.wtf(TAG, "Activity Manager Crash."
                    + " UID:" + Binder.getCallingUid()
                    + " PID:" + Binder.getCallingPid()
                    + " TRANS:" + code, e);
        }
        throw e;
    }
}

ActivityManagerService继承IActivityManager.Stub类，该类是通过AIDL编译生成：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
public interface IActivityManager extends android.os.IInterface
{
    /** Local-side IPC implementation stub class. */
    public static abstract class Stub extends android.os.Binder
		    implements android.app.IActivityManager
    {
        private static final java.lang.String DESCRIPTOR = "android.app.IActivityManager";
        /** Construct the stub at attach it to the interface. */
        public Stub()
        {
            this.attachInterface(this, DESCRIPTOR);
        }

         // Cast an IBinder object into an android.app.IActivityManager interface,
         // generating a proxy if needed.
	    public static android.app.IActivityManager asInterface(android.os.IBinder obj)
	    {
            if ((obj==null)) {
                return null;
            }
            android.os.IInterface iin = obj.queryLocalInterface(DESCRIPTOR);
            if (((iin!=null)&&(iin instanceof android.app.IActivityManager))) {
                return ((android.app.IActivityManager)iin);
            }
            return new android.app.IActivityManager.Stub.Proxy(obj);
        }

        @Override public android.os.IBinder asBinder()
        {
            return this;
        }

        @Override public boolean onTransact(int code,
		        android.os.Parcel data, android.os.Parcel reply,
		        int flags) throws android.os.RemoteException
        {
            java.lang.String descriptor = DESCRIPTOR;
            switch (code)
            {
                case INTERFACE_TRANSACTION:
                {
                    reply.writeString(descriptor);
                    return true;
                }
                case TRANSACTION_startService:
                {
                    data.enforceInterface(descriptor);
                    IApplicationThread _arg0 = (IApplicationThread) data.readStrongBinder();
                    Intent _arg1 = (Intent) data.readParcelable();
                    java.lang.String _arg2 = data.readString();
                    boolean _arg3 = (0!=data.readInt());
                    java.lang.String _arg4 = data.readString();
                    int _arg5 = data.readInt();
                    android.content.ComponentName _result = this.startService(_arg0, _arg1,
		                    _arg2, _arg3, _arg4, _arg5);
                    reply.writeNoException();
                    if ((_result!=null)) {
                        reply.writeInt(1);
                        _result.writeToParcel(reply,
		                        android.os.Parcelable.PARCELABLE_WRITE_RETURN_VALUE);
                    } else {
                        reply.writeInt(0);
                    }
                    return true;
                }
                case case TRANSACTION_startActivity::
                {
                    data.enforceInterface(DESCRIPTOR);
                    android.app.IApplicationThread _arg0;
                    _arg0 = android.app.IApplicationThread.Stub.asInterface(data.readStrongBinder());
                    java.lang.String _arg1;
                    _arg1 = data.readString();
                    android.content.Intent _arg2;
                    if ((0!=data.readInt())) {
                        _arg2 = android.content.Intent.CREATOR.createFromParcel(data);
                    }else {
                        _arg2 = null;
                    }
                    java.lang.String _arg3;
                    _arg3 = data.readString();
                    android.os.IBinder _arg4;
                    _arg4 = data.readStrongBinder();
                    java.lang.String _arg5;
                    _arg5 = data.readString();
                    int _arg6;
                    _arg6 = data.readInt();
                    int _arg7;
                    _arg7 = data.readInt();
                    android.app.ProfilerInfo _arg8;
                    if ((0!=data.readInt())) {
                    _arg8 = android.app.ProfilerInfo.CREATOR.createFromParcel(data);
                    }
                    else {
                    _arg8 = null;
                    }
                    android.os.Bundle _arg9;
                    if ((0!=data.readInt())) {
                    _arg9 = android.os.Bundle.CREATOR.createFromParcel(data);
                    }
                    else {
                    _arg9 = null;
                    }
                    int _result = this.startActivity(_arg0, _arg1, _arg2, _arg3, _arg4, _arg5, _arg6, _arg7, _arg8, _arg9);
                    reply.writeNoException();
                    reply.writeInt(_result);
                    return true;
                }
                //...
                default:
                {
                    return super.onTransact(code, data, reply, flags);
                }
            }
        }

        private static class Proxy implements android.app.IActivityManager
        {
            private android.os.IBinder mRemote;
            Proxy(android.os.IBinder remote)
            {
                mRemote = remote;
            }
            @Override public android.os.IBinder asBinder()
            {
                return mRemote;
            }
            public java.lang.String getInterfaceDescriptor()
            {
                return DESCRIPTOR;
            }

            @Override
            public android.content.ComponentName startService(
		            in IApplicationThread caller, in Intent service,
		            java.lang.String resolvedType, boolean requireForeground,
		            java.lang.String callingPackage, int userId)
		            throws android.os.RemoteException
            {
                android.os.Parcel _data = android.os.Parcel.obtain();
                android.os.Parcel _reply = android.os.Parcel.obtain();
                android.content.ComponentName _result;
                try {
                    _data.writeInterfaceToken(DESCRIPTOR);
                    _data.writeStrongBinder(caller);
                    _data.writeParcelable(service);
                    _data.writeString(resolvedType);
                    _data.writeInt(((requireForeground)?(1):(0)));
                    _data.writeString(callingPackage);
                    _data.writeInt(userId);
                    mRemote.transact(Stub.TRANSACTION_startService, _data, _reply, 0);
                    _reply.readException();
                    if ((0!=_reply.readInt())) {
                        _result = android.content.ComponentName.CREATOR.createFromParcel(_reply);
                    } else {
                        _result = null;
                    }
                } finally {
                    _reply.recycle();
                    _data.recycle();
                }
                return _result;
            }
        }

        static final int TRANSACTION_startService = (android.os.IBinder.FIRST_CALL_TRANSACTION + 0);
    }

    public android.content.ComponentName startService(
		    in IApplicationThread caller, in Intent service,
		    java.lang.String resolvedType, boolean requireForeground,
		    java.lang.String callingPackage, int userId)
		    throws android.os.RemoteException;
}

可以看出，JavaBBinder仅是个中间人，它本身没有任何业务函数，其中工作是：

  • 当它收到请求时，只是简单的调用它绑定的Java层Binder对象的exeTransact
  • 该Binder对象的exeTransact调用其子类实现的onTransact函数
  • 子类的onTransact函数将业务又分派个其子类来完成

AMS响应请求过程
PS：上图中虚线表示调用子类重载的方法
通过这种方式,来自客户端的请求就能传递到正确的Java Binder对象。

3-Java层Binder架构总结

Java层Binder架构简图如下所示：
Java层Binder架构

  1. BinderProxy代表客户端，Java层BinderProxy在Native层对应着BpBinder。凡事从Java层发出的请求，先是从Java层BinderProxy传递给Native层的BpBinder，由BpBinder将请求发送给Binder驱动
  2. Binder代表服务端,JavaBBinder继承BBinder,JavaBBinder通过mObject指向Java层的Binder,JavaBBinder起到一个中转的作用，将来之客户端的请求从Native层传递到Java层。
  3. 在整个系统中只有一个服务关键 ServiceManager
